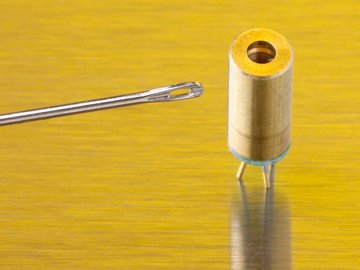

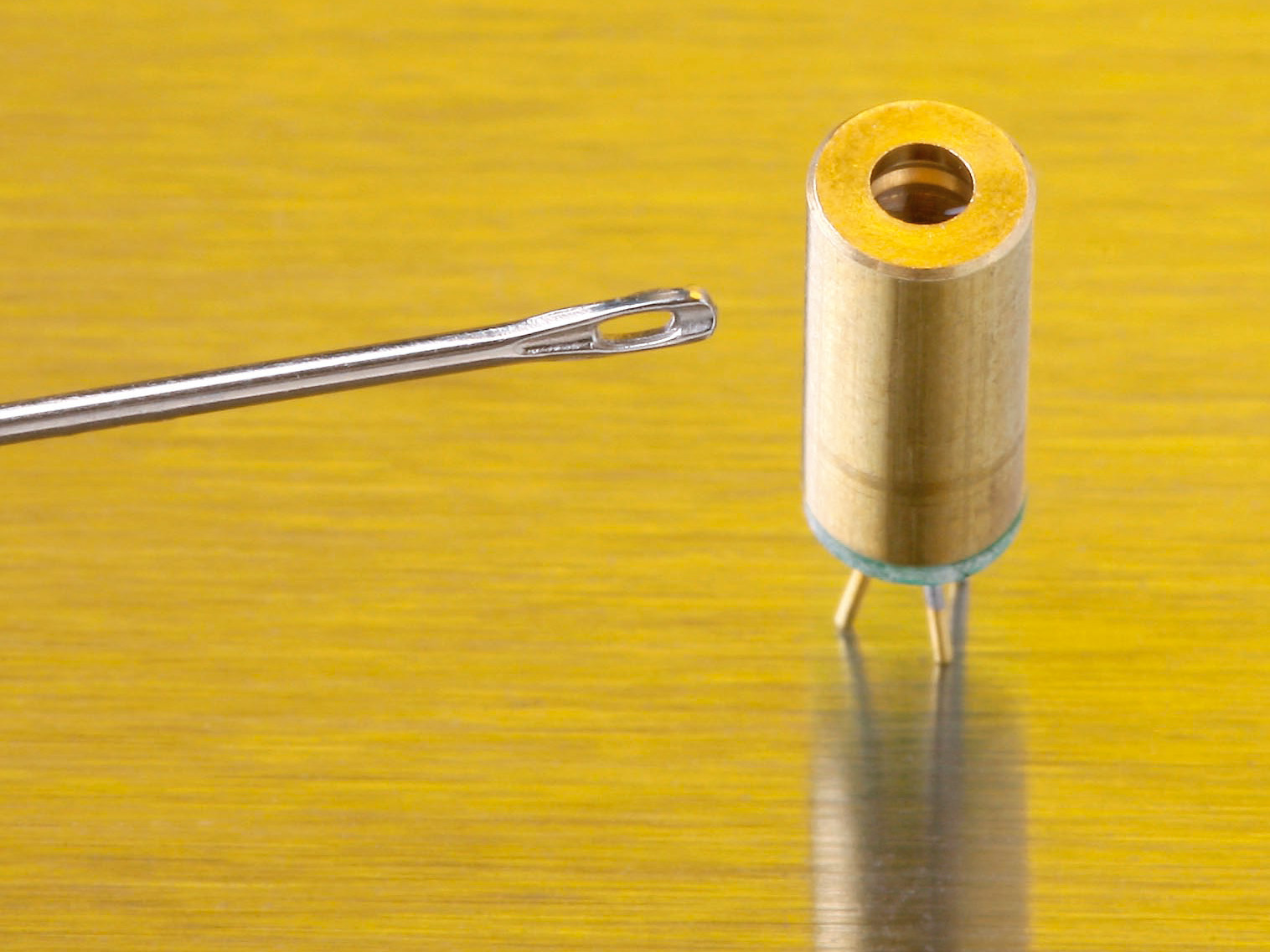

With a diameter of only 3.3 mm and a length of 7 mm and 6.1 mm, we can offer you the world’s smallest laser diode modules. These modules emit a red collimated dot at
650 nm; they already contain collimation optics and drive electronics. This ensures easy electric integration of these modules into your system. The available output power of Type 17 is < 1 mW; Type 07 is available with two levels of output power: < 1 mW and < 2.5 mW.
Due to their small housings, these modules are particularly well suited for applications in which very little space is available in the assembly. The LC-LMD series laser diode modules are an inexpensive and simple solution used in consumer products, hardware and household appliances, as targeting and adjustment aids, or as senders in optical sensors.
