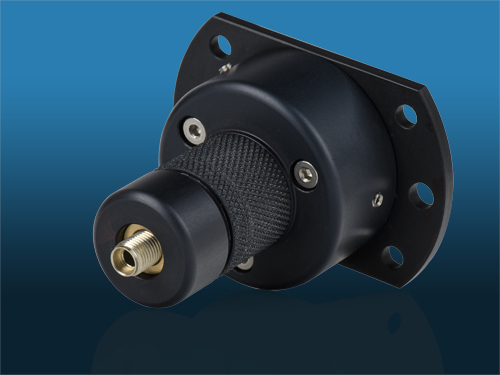

With the new fiber coupler from LASER COMPONENTS, it is possible to easily couple light into a fiber without having to readjust it every time you change the fiber.
To deliver the light of free-beam lasers from “point A” to “point B,” it is often coupled into a fiber. User-friendly handling is important in everyday use. For this reason, LASER COMPONENTS has developed a fiber coupler. Using a mounting flange, the coupler is directly attached to the laser.
It is possible to couple laser beams with a diameter of up to 10 mm into fibers with core diameters ranging from 100 µm to 2000 µm. Only a fine adjustment is necessary: Using adjustment screws, it is possible to adjust the optics on the inside of the coupler along the x-axis and the y-axis or to tilt them. In addition, adjusting the optics along the z-axis is done via a knurled wheel.
The fiber coupler is suitable for the wavelength range from 400 nm to 1300 nm. The optics on the inside can be equipped with different AR coatings on an optional basis.
