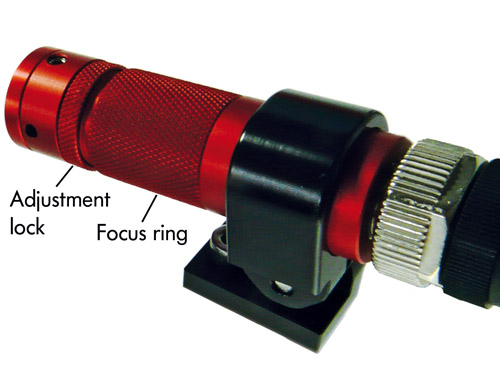

The FLEXPOINT® MVmicro is a line laser with a homogeneous power distribution that can be precisely focused without the use of any tools. A counter screw prevents accidental readjustment. The line position remains unchanged.
Features
- Line width: e.g. 40 µm at a distance of 50 mm or 550 µm at a distance of 1 m (1/e²)
- Power supply: via an industrial standard 4-pin M12 connection
- Operating voltage: 4.5 VDC - 30 VDC
Using an internal power control the brightness of the module remains unchanged within this voltage range.
These lasers are protected against reverse polarity and the housing is potential free. Other electronic components mounted on the same board thus remain unaffected.
Customer-specific Lasers
The fan angle (typically 5°-90°), wavelength (635-905 nm), and output power (5 µW to 100 mW) can be adjusted in a wide range to meet the customer’s needs. To modulate and increase independence of ambient light or to dim the output power, the lasers can be equipped with a control wire. A comprehensive range of accessories is also available.
