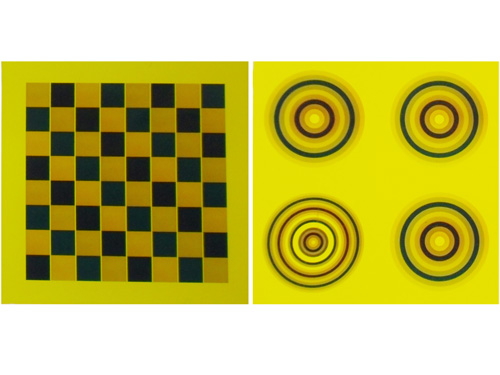

The successful introduction of the unique patterned colorPol® polarizer in 2002 did open a wide field of applications. With its steady development activities, CODIXX is now able to introduce a new kind of patterned colorPol® polarizer. This new generation of patterned colorPol® polarizer allows unlimited flexibility of polarizing structures with resolution down to 1 µm.
The structures can be designed to feature different optical properties such as orientations of the polarization axis or wavelengths surrounding 600 nm and 800 nm featuring extinction ratios above 1,000 :1. The polarizers can be supplied in various shapes and sizes.
This new generation of patterned colorPol® polarizers shows the well-proven properties, like extreme temperature stability ranging from below -50 °C (-58° F) up to above +400 °C (+750 °F) and the resistance to UV radiation, solvents, most acids and bases too.
