HASO4 SWIR Wavefront Sensor

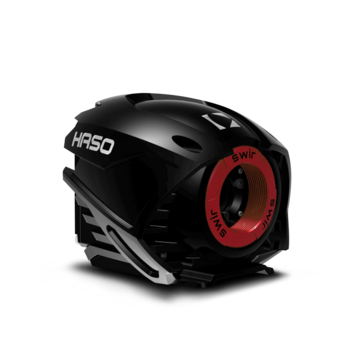

The HASO4 SWIR is a Shack-Hartmann wavefront sensor optimized for the short-wave infrared (SWIR) spectrum, covering wavelengths from 900 to 1700 nm. Utilizing an InGaAs camera, it delivers absolute wavefront measurement accuracy of λ/100 RMS and repeatability of λ/200 RMS. With a spatial sampling of approximately 232.5 µm and a dynamic range for local radius of curvature from ±0.017 m to infinity, it ensures precise measurements for various optical applications. The sensor features a 40 x 32 microlens array over a 9.30 x 7.44 mm² aperture, enabling detailed wavefront analysis. Its compact design (75 x 78 x 63 mm) and lightweight (250 g) make it suitable for integration into diverse setups.
Advanced Features for Enhanced Usability
Incorporating SpotTracker™ technology, the HASO4 SWIR provides absolute wavefront and tilt information, eliminating the need for manual alignment and simplifying integration into optical systems. The sensor supports USB 3.0 connectivity with a maximum acquisition frequency of 150 Hz and offers an optional GigE converter for alternative interfacing needs. Its compatibility with Windows 10 and 11 ensures seamless integration into modern laboratory environments. For applications requiring ultra-short exposure times, the Gated version allows exposure times down to 100 ns, facilitating synchronization with pulsed lasers.
Applications
- Checking beam collimation with an accuracy better than 300 m radius of curvature
- Direct wavefront acquisition of converging and diverging F/5 beams with an accuracy of about λ/100 rms including astigmatism and high order aberrations
- Control and adjustment of axial laser beam deviation better than 5 µrad rms
- Optical quality control, metrology, LIDAR and adaptive optics
Contact
Benefits
- Accurate Infrared Wavefront Analysis: Delivers high-precision measurements (λ/100 RMS) in the 900–1700 nm range, ideal for SWIR optics and IR laser applications.
- Alignment-Free Operation: Built-in SpotTracker™ technology eliminates manual alignment, simplifying setup and ensuring consistent, reliable results.
- High-Speed, Real-Time Performance: Captures data at up to 150 Hz with USB 3.0 connectivity, and optional gated exposure down to 100 ns allows use with pulsed lasers.
Features
- Laser beam deviation control better than 3 µrad rms
- Collimation diagnostic up to curvature radii over 300m
- Live wavefront acquisition. Measurement accuracy lambda/100 rms guaranteed for beams down to F/5
- True tilt measurement, curvature, astigmatism and high-order aberrations quantification
- 3D localization of a focal spot up to 0.1 μm rms and 1 μm rms for lateral and axial resolution, respectively (F/5 beam)
- Ultra-shot exposure time for Gated version
Datasheet
