The popular Visualize product line from LASER COMPONENTS serves as a low cost alternative to beam profilers. Visualize can be an invaluable tool for alignment, location and visualisation of laser radiation outside of the visible spectrum, using a phosphor based scintillator screen to convert ultraviolet and infrared into visible light.

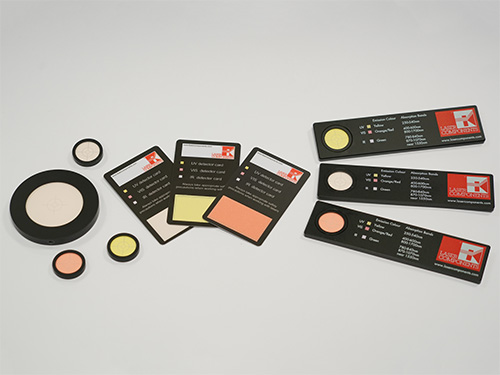

The range consists of three core products: Visualize, which produces a yellow/red emission when exposed to blue-NIR, perfect for viewing visible sources when using laser protective eyewear. Visualize IR, which allows for safe visualisation of continuous wave or pulsed NIR, and UVisualize, which converts UV radiation to visible yellow light.
Each variant of the Visualize range is available in three formats: the laminated converter card - a budget format suitable for low power lamp and laser use; disc and wand - an ergonomic design, perfect for situations where frequent component positioning is required; and finally the optical bench mount head, which features a high degree of adjustability and a rugged 40 mm active area, making it the perfect solution for component positioning and beam profiling - complete with alignment target.
