LASER COMPONENTS supplies iXblue‘s modulator bias controllers and board types, showing a very low noise sensitivity yielding a significant reduction of the required dither voltage amplitude.
This new version is characterised by an enhanced stability. A USB communication and a Graphical User Interface (GUI) are introduced for ease of use.
The MBC are identified according to their application; ANalog, DiGital and PuLse fit the modulator behaviour and characteristics perfectly. The MBC-AN is designed for ANalog applications where a high purity carrier is required. They are easy to implement, and fully automated with the auto-set function.

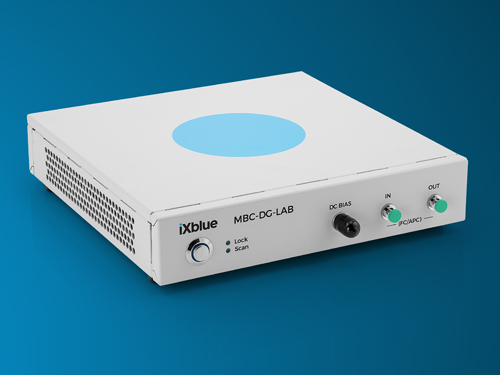

The MBC-DG-LAB controller is a continuously tunable bias controller, meaning it allows operation of the controlled intensity modulator at any point of its transfer function and thus can be used for any telecom and DiGital modulation schemes. Similarly, the MBC-LAB benefits from an auto-set operation for the Min modes resulting in a simplified use for PuLse applications.
The MBC-IQ-Lab is an electronic system able to control MXIQER modulators in a CS-SSB modulation scheme. It is based on the minimisation of the beating harmonic of two small dithers. This system maintains harmonic rejection of optical CS-SSB spectrum better than 40dB over tens of hours.
