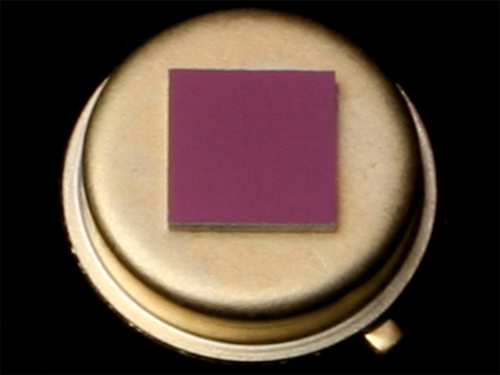

ST60 High Temperature Si Based Thermopile Detector

A single-channel silicon-based thermopile that will withstand operating temperatures of 225°C, with a small active area of 0.61 mm x 0.61 mm in a TO-5 package. The reduced height package functions as an internal aperture. Two thermistor options provide ambient package temperature measurement.  This is currently only available with 8-14um silicon window. Time constant of 18ms with nitrogen encapsulation gas delivers a very low Temperature Coefficient of Responsivity of -0.4%°C. This detector has a very short thermal shock response to ambient temperature change.

Options:
1) ST60R version offers a low-cost (20% tolerance) poly-silicon resistor to be used as a PTC thermistor.
2) Package hole size options precisely define active area for applications with FOV and/or spot size requirements.

Applications:
excellent for non-contact temperature measurement and fire detection/suppression in extreme heat environments.

Benefit: operating temperatures to 225°C with small active area size with medium output.
