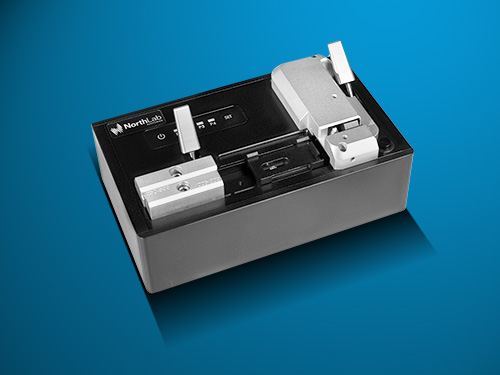

ProCleave LD II is one of our robust and most advanced cleaving instruments. It allows for smooth operation while cleaving large diameter fibres (cladding diameters from 125 µm to 500 µm, coating diameters from 250 µm to 900 µm), and ease-of-use while maintaining high production yield and process speed.
Low cleaving angles with flat surfaces can be easily achieved (<0.5o). Special platforms are available that support Fujikura, Fitel, 3SAE, but can be used without fibre holders too. This cleaver can be operated while connected to an external power supply as well as a battery (can be supplied with built in rechargeable Li-Ion battery).
The ProCleave has a fully automated system, which detects the fibre and adjusts the clamping strength to the required level (while detecting the fibre diameter and adjusting the system accordingly). The diamond blade with a vibration frequency sweep adjusts itself until the fibre is cleaved. These techniques result in a fully automated and maintenance free cleaving.
ProCleave LD II is an excellent tool and is chosen by our customers frequently - both in high volume manufacturing as well as R&D environments.
