LASER COMPONENTS‘ partner Omega Optical are pleased to announce the launch of the new RapidBand stock programme, providing fast delivery for hundreds of bandpass filter combinations in a standard 25 mm diameter ring that is just 3.5 mm thick.

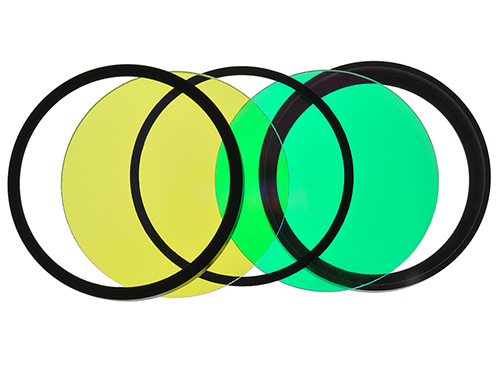

RapidBand filters are constructed by combining longpass and shortpass edges produced at 10nm increments from 400 nm to 700 nm. These are assembled in a unique, proprietary air-spaced ring designed to meet the size and quality requirements for many optical systems, and are ideal for applications from fluorescence microscopy to rapid prototyping. Longpass and shortpass edge filters can also be ordered as RapidEdge filters, and are mounted in the same 25 mm ring.
RapidBand filters are manufactured with durable dual magnetron sputtered coatings, and will have 85% typical transmission, OD5 average and OD4 minimum blocking from UV-1100 nm for silicon detectors, a minimum 20.9 mm clear aperture, and ¼ λ TWD @ 633 nm. Theoretical spectral curves of the finished bandpass filters are available, calculated from measured edge filter spectra.
Choose from over 350 possible RapidBand combinations and more than 50 longpass and shortpass RapidEdge filters, all with minimal lead time! Additional edge filters and bandpass combinations will be added as the programme’s inventory is expanded. We believe our selection, quality, price, and delivery times will make this your first choice for stock filters.
