Increasing demands on laser optics have brought about improvements in the quality and precision of raw substrates. To meet these demands the production of spherical lenses has become one of LASER COMPONENTS’ core competencies.
High quality verification
To guarantee the highest quality of our products, our lenses are verified by independent companies as well as using industry standard calibrated instruments. With our standard manufacturing process we achieve a medium roughness of < 0.3 nm on conventional fused silica and < 0.4 nm on BK7.
Prototype and volume production at reasonable prices
In Germany, we produce both custom prototypes and volume production optics. Through easy European transport networks, delivery times remain short and our lenses are attractively priced. In addition to custom lenses, we also have a large range of optical components in stock. Currently, we have over 1000 uncoated substrates and more than 2500 coated laser optics. Just call or email us with your requirements.
Production and Measurement Options

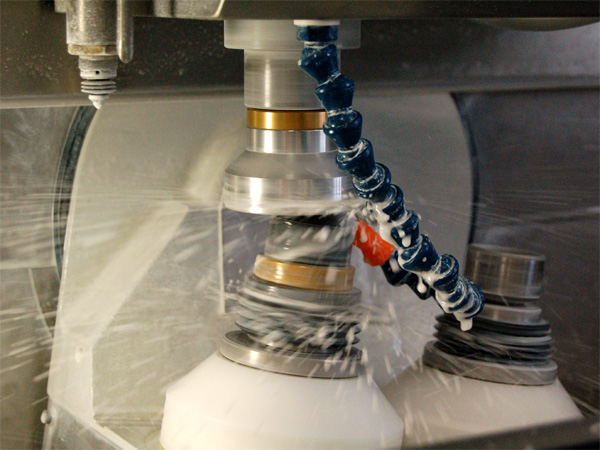

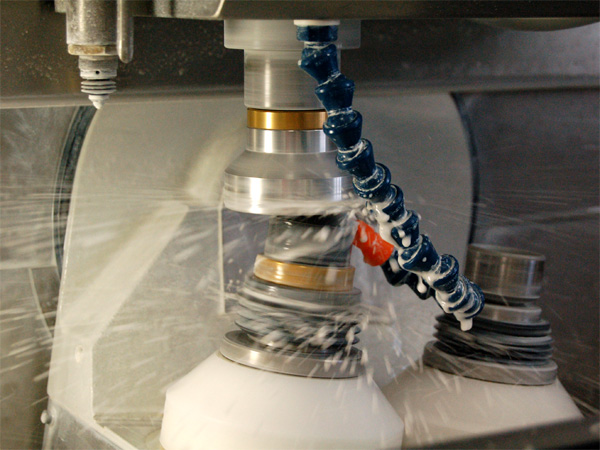

- CNC-controlled Production
- QED - MRF® technology.
Magnetorheological finishing: Localised surface corrections to achieve the best possible surface figure - Interferometric measurement. Two Zygo interferometers (L/10 documentation for plano-spherical optics)
- Radii Precision < 0.1%
Spherical Lenses
- Shapes: Plano-convex, plano-concave, biconvex, biconcave, meniscus lenses
- Diameter: 12.7 mm to 50.8 mm
- Radii: Custom radii available
- Substrate materials: N-BK7, Corning 7980, also selected for 193 nm, Infrasil® 302, Suprasil® 300, Suprasil® 3001, Spectrosil®, HOQ310, etc.
Typical specifications
- Laser polish
- Wavefront error: < L/10
- Surface quality: < 10-5
- Roughness: fused silica < 0.3 nm, BK7 < 0.4 nm
- Centering precision: < 3’
