The popular MVmicro machine vision line laser has been used extensively in industry thanks to its crisp, uniform intensity line, ideal for use with machine vision camera systems. Due to this success we have expanded the series to include a microcontroller which further extends the MVmicro’s capabilities!
The RS-232 compatible connector can be used to configure the laser allowing complete control over parameters such as output power and automatic temperature shutdown. In addition to this the user can now monitor parameters such as operating hours, temperature, and diode current.
In addition to changing module settings such as digital and analogue modulation and variable power adjustment, the modules can also be programmed with custom settings defined by you to best perform in your product!

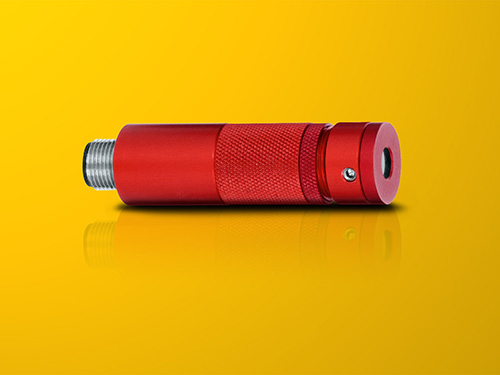

The MVmicro DIG is available in multiple designs such as single or parallel multiple lines; all with homogenous intensity. The MVmicro DIG is a compact Ø19x90 mm module which operates from 5-30 VDC via an M12 connector. The lasers can be focussed by hand and feature a locking ring to ensure the focus does not slip during use.
