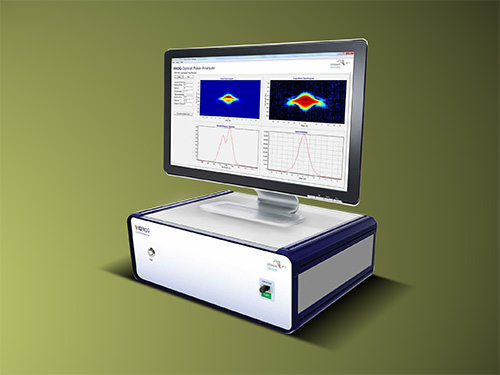

The IQFROG can be used to measure the intensity and phase of optical pulses in both spectral and temporal domains, giving a complete pulse characterisation. It is based on the principle of frequency-resolved optical gating (spectrally resolved SHG autocorrelation) which allows sub-picosecond resolution since it is not limited by the response time of the detector.
Thanks to its long delay arm and high-resolution spectrometer, the IQFROG is able to measure a wide range of optical pulses lengths; from 300 fs, up to 50 ps for chirped pulses. The user friendly software recovers all the characteristics of the pulse, including pulse shape, spectrum, chirp and group delay.
The IQFROG is available in 1.0 μm and 1.5 μm wavelength versions. The 1 μm version is an ideal tool for seed laser pulse characterisation in chirped pulse amplification (CPA), while the 1.5 μm version is suitable for C & L band telecom applications. In both versions a connectorised fibre input makes coupling of the beam easy and eliminates need for manual alignment.
Coherent Solutions is a New Zealand based company specialising in coherent detection, pulse measurement, and modular test and measurement equipment for fibre optic laboratories. In Germany and the UK, its products are exclusively distributed by LASER COMPONENTS.
