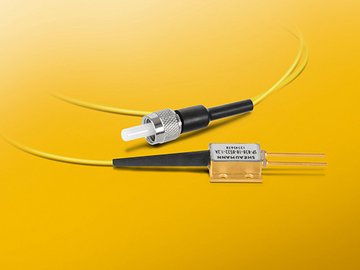

Both the small SheauPac housing and the efficient fiber coupling facilitate the high optical power of SheauPac laser modules:
In multimode fibers, the level of power reaches to up to 8 W; in single-mode fibers, this level reaches to up to 300 mW. Both versions emit in the near IR range from 785 nm to 1064 nm and are available with a maximum operating temperature of up to 60°C upon request.
The hermetic housing is electrically isolated and measures only 22.10 x 12.70 x 4.70 mm.
There are two versions of the fiber pigtail available for selection: a 6/125 µm SM fiber or a 200/220 µm MM fiber. Upon request, each fiber can be equipped with an optical connector.
SheauPac lasers are used in medical and dental technology, material processing, printing technology, diode-pumped laser systems, fiber lasers, and illumination.
