We present four new conversion screens for the infrared wavelength range:
LDT-008TL. The LDT-008TL makes laser radiation visible in the wavelength range from 800 nm to 1600 nm. In a darkened room, minimum sensitivity is approximately 0.5 mW/cm² @ 1064 nm; the damage threshold for short-term exposure is almost 20 W/cm².

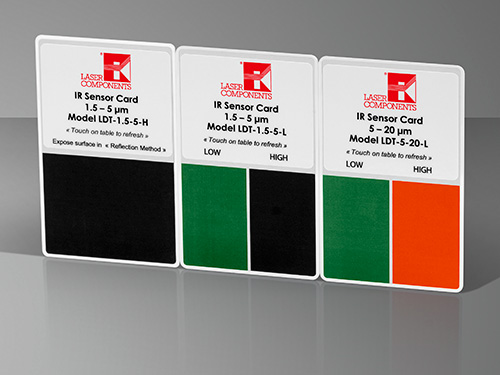

IR sensor card. Detection cards for the wavelength range from 1.5 µm to 20 µm are also new in our product portfolio. These detector cards are optimally suited for the radiation localization of Hol:YAG, Er:YAG, and CO2 lasers.
Two versions are available each for these wavelength ranges:
- High-power version up to 120 W/cm² and 50 W/cm²
- Combined low-power/high-power version, low power up to 8 W/cm²
Please note that the LDT-007 and LDT-007B conversion screens currently cannot be delivered. We will inform our customers as soon as the cards are available again.
