Zooms à Forts Grossissements - Zoom 12X

Avec une ouverture de 0.018 - 0.1 et une gamme nominale de zoom de 0.58 - 7X, le zoom 12X est l’unique système optique offrant une telle combinaison de gamme de grossissements et de résolutions.



Etablir le Standard d’Excellence Optique

• Incroyable ratio du zoom de 12:1 avec un grossissement dynamique de 0.07X-583X.
• L’attachement télécentrique vous permet de disposer du premier zoom télécentrique parfocal du marché avec un champ jusqu’à 50 mm.
• Résolution améliorée avec 0.018-0.1 N.A.
• Distance de travail variable de 32 à 341 mm.
• Champ de vue de 0.006 mm à 85.71 mm avec attachements.
• Clarté et précision des bords imbattables.
• Fonctionne avec les caméras de formats 1/4”, 1/3”, 1/2” et 2/3”.
• Les systèmes de Zooms 12X reposent sur les tubes d’adaptation déjà utilisés avec la série 6000.

The Highest Combination of Zoom Range and Resolution in a State-of-the-Art Zoom System

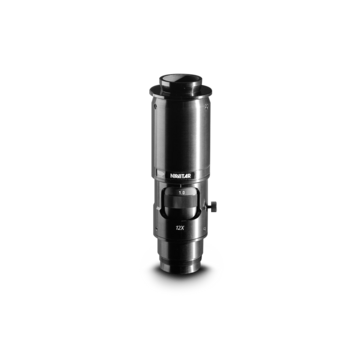

Navitar’s 12X Zoom is the next generation in video zoom optics. With a numeric aperture of 0.018 - 0.1 and a nominal zoom range of 0.58 - 7X, the 12X is the only single lens system to provide such a high combination of zoom range and resolution. This outstanding combination of video clarity and zoom range, coupled with unprecedented field coverage, means that you will now be able to view a wider range of parts with a single video inspection system.

Flexible by Design

The 12X Zoom system is designed on a modular basis, offering optical quality and mechanical flexibility. This interchangeable design, combined with a wide range of lens adapters and attachments, allows you to easily choose the magnification, field of view and working distance that best suit your viewing needs. In fact, the 12X Zoom system is even compatible with existing Zoom 6000 adapters.*

All 12X Zoom models have a 12X parfocal zoom lens system with a high N.A. to achieve higher resolution and improved contrast. Working distance can be varied from 32 mm (1.25") to 341 mm (13.4") and fields of view can be achieved from 0.006 mm to 85.71 mm.

Designed to Increase Productivity

The 12X Zoom system is ideal for use in the inspection of a wide range of products, such as semiconductor chips, PC boards and BGAs. It increases productivity by eliminating the need to change components to view a wider range of parts. It’s easy to use and displays crisp, clear images on any monitor for individual or group viewing.

Unbeatable Accuracy

Our 12X Zoom delivers unbeatable accuracy and repeatability for even the toughest die bonding, BGA, and FPD inspection applications. Superb Navitar optics deliver remarkably high contrast, high resolution video images. The 12:1 zoom ratio provides an incredible magnification range that allows both high magnification for precision measurement and inspection, as well as low magnification for a wider field of view. Bonding, probing, scribing and aligning applications can all be performed better and more accurately than with any other zoom lens on the market.

*Adapters are components positioned between the zoom lens and the camera.
