Features

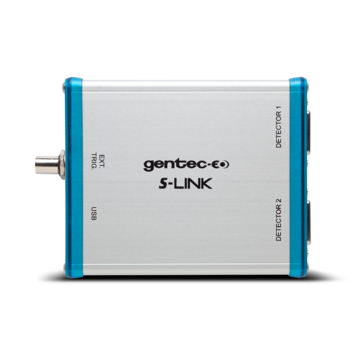

The S-LINK is designed to readout thermopiles and pyroelectric detectors. This dual-channel monitor reads out power and energy detectors in any combination directly at a computer. It comes with the appropriate software for this purpose. Gentec-EO’s S-LINK is, therefore, used in particular in automated measuring stations.
Serial commands are available in all versions. These commands provide you with absolute control over your measurement results. The S-LINK transmits all measurement points directly to a PC. The transfer of data is carried out with 10 kHz/channel!

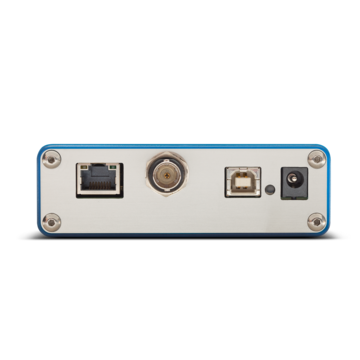

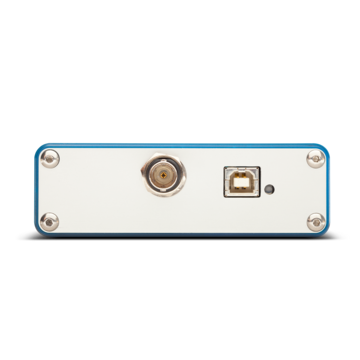

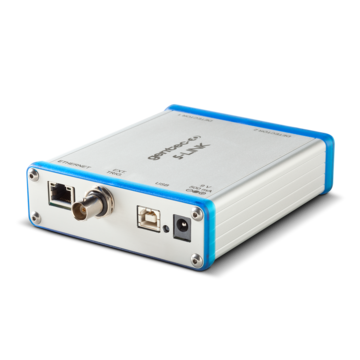

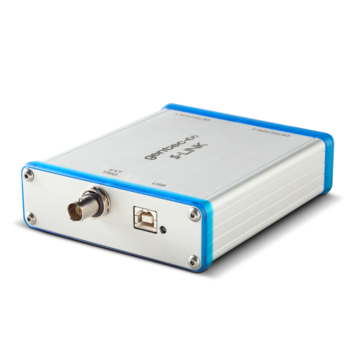

No matter which interface you prefer, Gentec EO’s S-Links are available with either a pure USB or Ethernet/USB interface. The USB interface does not require an external power supply. This is provided directly via the USB interface.
The standard version of the S-LINK also contains an external trigger (2.4 V to 24 V).
