Mobile Laser Safety Barriers

Different Materials for Laser Safety Barriers – Unlimited Possibilities

Laser safety barriers are ideal for shielding laser workstations quickly and flexibly.

They are available in various sizes and materials and offer protection for all standard wavelengths. Different materials with characteristic properties are used to protect against low, medium, high, and very high-power laser radiation.

Mobile laser safety barriers are mounted on wheels so that they can be used effortlessly in different locations. If the wheels are locked, they guarantee a safe position. Flexibility and stability are therefore not a contradiction in terms when it comes to movable barriers.

FLEX-GUARD^®Laser Safety Barriers with Black Covering

FLEX-GUARD^® laser safety barriers are covered with black laser safety curtain fabric certified according to EN 12254. They protect against wavelengths from 190 nm to 11100 nm and are suitable for low and medium-power laser applications. Please refer to the datasheet for exact specifications.

FLEX-GUARD^® laser safety barriers are available as:

• PT-250WB-4: 1.20 m × 1.98 m (width × height)
• PT-250WB-6: 1.80 m × 1.98 m (width × height)

For shielding larger areas, the movable barriers can also be connected to each other. The necessary connecting strip is included with each barrier ex works.

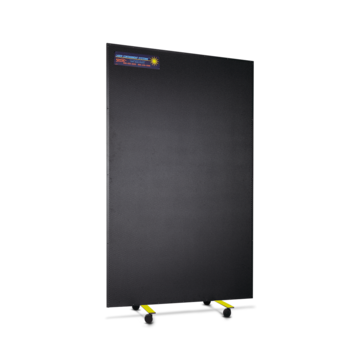

EVER-GUARD^® Laser Safety Barriers Made of Anodized Aluminum Sheets

EVER-GUARD^® laser safety barriers are made of anodized aluminum sheets certified according to EN 12254. They are suitable for medium and high-power laser applications at wavelengths from 190 nm to 11100 nm. For exact specifications, please refer to the datasheet.

EVER-GUARD^® laser safety barriers are available as:

• PT-EVG4: 1.20 m × 1.98 m (width × height)
• PT-EVG6: 1.80 m × 1.98 m (width × height)

EVER-GUARD^® laser safety barriers can be interconnected to shield larger areas. For this purpose, a special connecting strip is included with each safety barrier.

ServiceRight^® Laser Safety Barriers for Service Applications

The three-panel ServiceRight^® laser safety barriers with black laser safety curtain fabric certified according to EN 12254 can be stowed in a small bag for transport. The individual panels can be connected to each other via snap fasteners. They are designed for wavelengths from 190 nm to 11100 nm and for low and medium-power laser applications. For details, please refer to the datasheet.

ServiceRight^® laser safety barriers are available with the following dimensions:

• PT-SRTRI3-CR: 3 × 0.90 m × 1.98 m (width × height)
