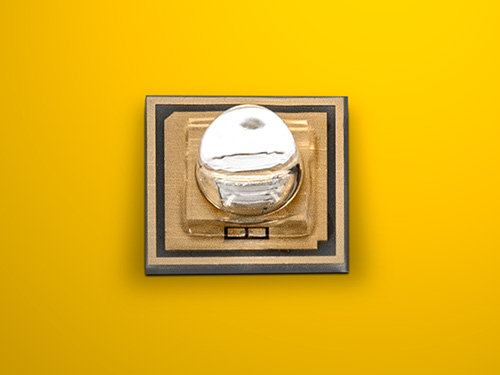

The higher the intensity of UVC radiation, the shorter the irradiation time for efficient disinfection. The latest addition to Bolb’s S6060 series delivers focused UVC radiation at a 33° beam angle. This is provided by a lens integrated into the chip design. Compared to the standard 150° models, the narrower beam angle means that the intensity of the UVC radiation remains high even at some distance from the LED. At a distance of 10 cm, it is still 1 mW/cm². Within 3 seconds, for example, a dose of 3 mJ/cm² would be reached. This is a crucial advantage for use in the disinfection of water, air, and surfaces.
Like all other LEDs in the series, the S6060TL is supplied as an SMD chip and can be installed directly in the boards of the application.
