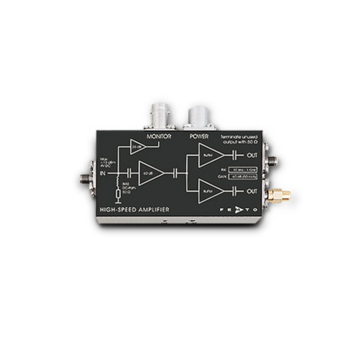

The series HSA High-Speed Amplifiers offer a well-balanced combination of high gain, wide bandwidth of up to 2 GHz and low noise making them ideal for time-resolved measurements with ultra-fast photodetectors. The compact housing design with threaded M4 and 8-32 holes allows easy integration in all optical bench systems. The HSA-X comes in a very compact package with integrated Bias-T, SMA signal input and output connectors and a selection of fixed gain from 20 to 40 dB. In addition to the features of the HSA-X the HSA-Y is equipped with a DC-monitor for alignment and detector control or the measurement of low frequency background signal. Furthermore, the HSA-Y features two identical signal outputs enable triggering or signal control without the need for an external signal splitter.
Applications include preamplifier for ultra-fast detectors such as microchannel plates, photomultipliers (PMTs), avalanche-photodiodes (APDs) and PIN-photodiodes, triggering.
Contact
Datasheets
- HSA-Y-2-40 - 2 GHz High Speed Amplifier
- HSA-Y-2-20 - 2 GHz High Speed Amplifier
- HSA-Y-1-60 - 1 GHz High Speed Amplifier
- HSA-Y-1-40 - 1 GHz High Speed Amplifier

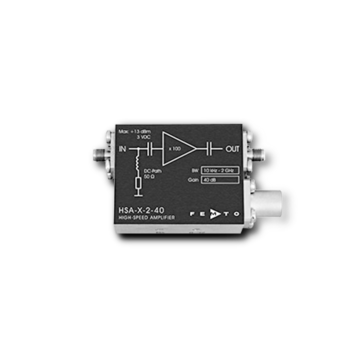

- HSA-X-2-40 - 2 GHz High Speed Amplifier
- HSA-X-2-20 - 2 GHz High-Speed Amplifier
- HSA-X-1-40 - 1.2 GHz High-Speed Amplifier
- HSA-X-I-2-40 - 2.2 GHz High Speed Amplifier
- Amplifier Overview
