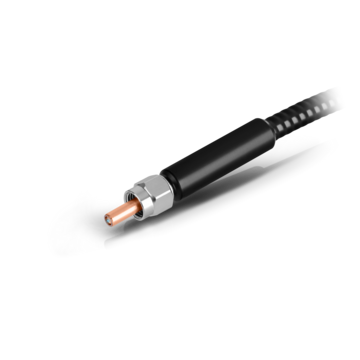

Assembled Cables with ModeStrip Connectors
In mode-strip assemblies, undesired modes are diverted from the fiber cladding. This offers several advantages:
- High optical beam quality without cladding modes
- Thermal hotspots in the fiber cladding can be avoided
- High power transmission does not destroy the fiber cable
ModeStrip assemblies are specifically assembled according to customer requirements. Through precise controls in the outgoing goods area, we guarantee an eccentricity of <10 µm (and if desired, also <5 µm). We can equip the fiber end face with an AR coating on an optional basis. Upon request, we can also supply you with measurement reports on the attenuation and centricity values, as well as photos of the end faces.
Why ModeStrip?
In theory, the light in optical fibers is reflected several times without loss at the interface between the fiber core and the fiber cladding according to the principle of total reflection. In practice, however, small fractions of power can enter the fiber cladding. During the transmission of high power, as much as 2% to 3% can lead to the destruction of the fiber cable. Mode-strip connectors provide a remedy by stripping off the cladding modes and dissipating the resulting heat in a controlled manner via a cooling element. This prevents thermal destruction of the fiber connector and simultaneously improves the beam profile where the fiber exits.
