Low Noise Balanced Photoreceivers
Smaller signals can be detected if the common-mode intensity noise can be reduced, as seen with laser sources for example. Using two matched photodiodes, creating the highest possible common-mode rejection ratio, both observing the same source, one signal is subtracted from the other and the result fed into a low-noise transimpedance amplifier. High rep-rate laser pulses with rapidly changing signal shapes, as in quantum state tomography for example, can be detected.

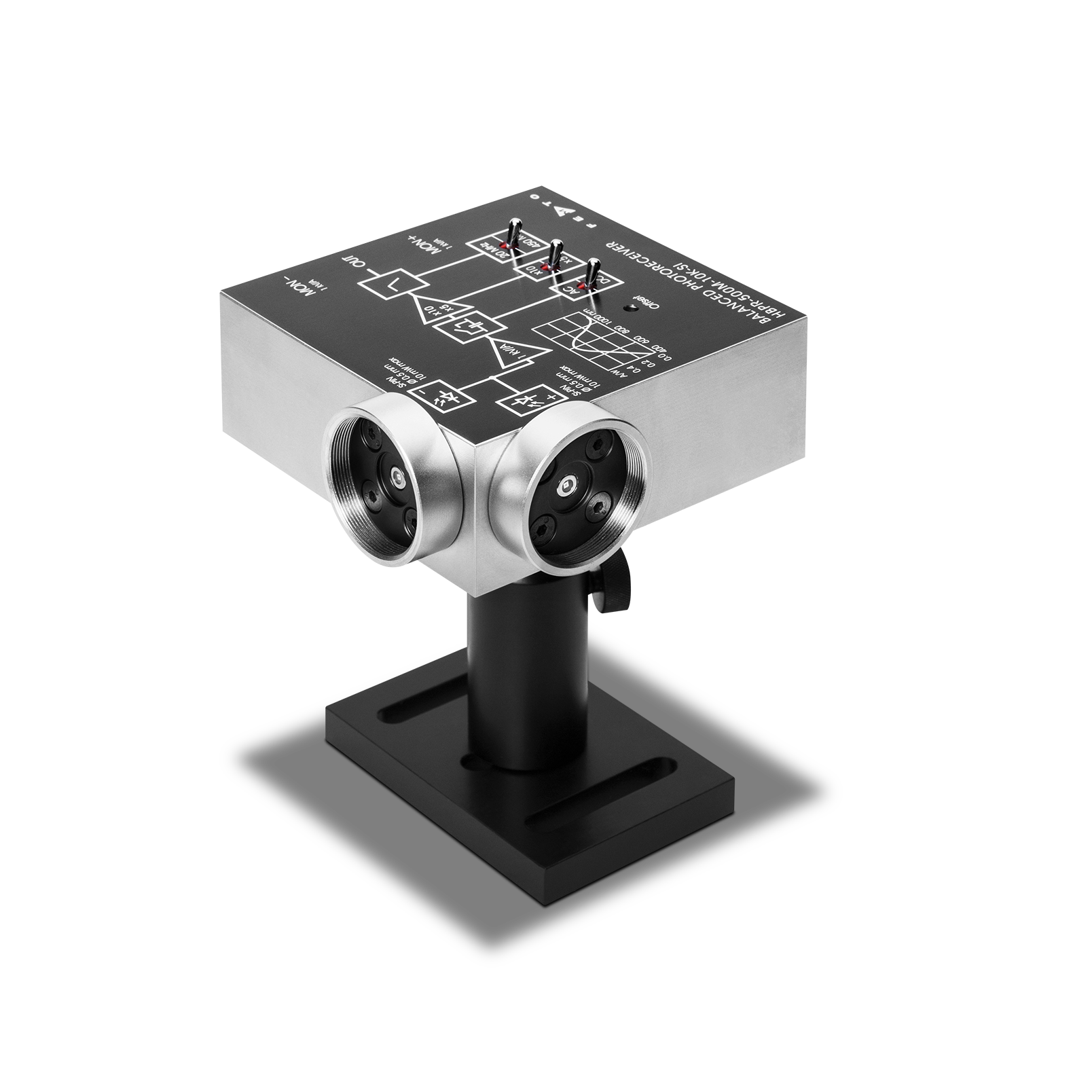

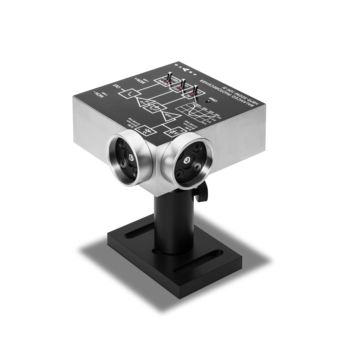

Available as free space or in fibre-coupled formats, these high-speed balanced photoreceivers (HBPR) have switchable gain and bandwidth, switchable AC/DC coupling and broad mechanical compatibility with common optical accessories.
Contact
Datasheets
- HBPR-100M-60K-IN-FC High-Speed Balanced Photoreceiver
- HBPR-100M-60K-IN-FS-FST High-Speed Balanced Photoreceiver
- HBPR-100M-60K-SI-FC High-Speed Balanced Photoreceiver
- HBPR-100M-60K-SI-FS-FST High-Speed Balanced Photoreceiver
- HBPR-200M-30K-IN-FC High-Speed Balanced Photoreceiver
- HBPR-200M-30K-IN-FS-FST High-Speed Balanced Photoreceiver
- HBPR-200M-30K-SI-FC High-Speed Balanced Photoreceiver
- HBPR-200M-30K-SI-FS-FST High-Speed Balanced Photoreceiver
- HBPR-450M-10K-IN-FS-FST High-Speed Balanced Photoreceiver
- HBPR-500M-10K-IN-FC High-Speed Balanced Photoreceiver
- HBPR-500M-10K-SI-FC High-Speed Balanced Photoreceiver
- HBPR-500M-10K-SI-FS-FST High-Speed Balanced Photoreceiver
