OEM laser modules with diameters of 3.3 mm and 11.5 mm are space efficient and cost effective. Due to their two-pin connection, they are ideally suited for soldering to circuit boards.

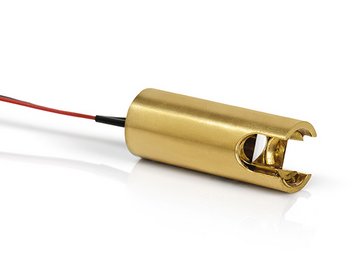

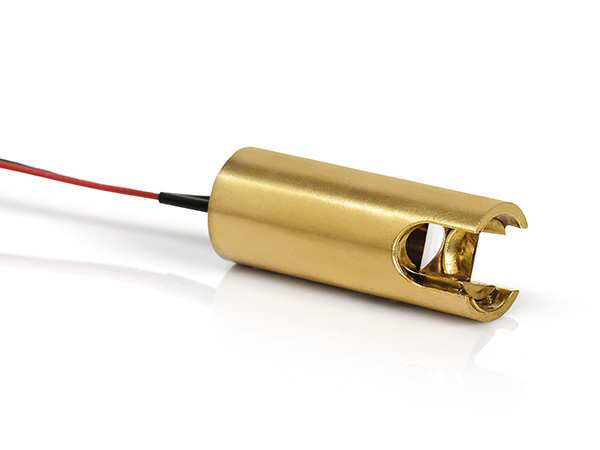

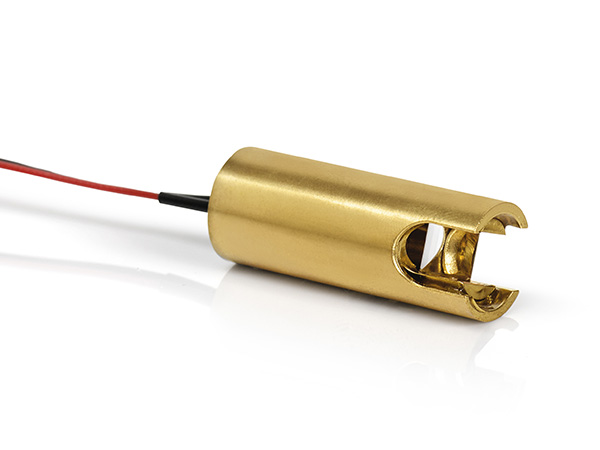

For all other applications, these laser modules are now available with 100 mm long cable strands. Use this service to make a connection between the power supply and the point of installation of the modules without any trouble.
The connector cables are available for models with the following designations:
- LC-LMD-650-01-01-A-C (4.0 mm diameter, 650 nm, 1 mW)
- LC-LMD-650-03-01-A-C (8.0 mm diameter, 650 nm, 1 mW)
- LC-LMD-650-05-01-A-C (10.5 mm diameter, focusable, 650 nm, 1 mW)
- LC-LMD-650-07-01-A-C (3.3 mm diameter, 650 nm, 1 mW)
- LC-LML-635-01-03-A-C (11.5 mm diameter, 635 nm, 3 mW, line laser)
The additional price for the design with cable strands amounts to just EUR 1.00/unit*.
* Prices and technical specifications may be subject to change or error. Prices are ex works Olching and do not include packing, insurance, or value-added tax. Products may be subject to prior sale.
