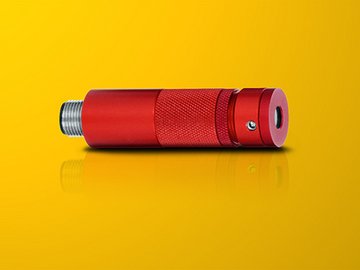

The FLEXPOINT® laser modules that are equipped with a microcontroller carry the addition “DIG.” The MVmicro DIG series was the first series of image processing lasers to be equipped with a microcontroller.
Communicate and Configure
The microcontroller opens up excellent possibilities for users who can communicate with the module via an RS232 interface and even configure laser parameters. This makes it possible to request the operating hours, temperature, or diode current. A certain output power or shutdown temperature can be programmed, for example.
Additional settings are possible via this interface; this includes digital or analog modulation and a variable power adjustment. In addition to the standard parameters, we also carry out custom programming.
Configure Your MVmicro DIG Laser Module
The MVmicro DIG laser is available in countless designs: The modules project either a single line or parallel multi-lines with a homogeneous power distribution. Further configurations are also available with a particularly thin line or an improved depth of focus. The lines can be easily focused by hand – tools are not required for this adjustment.
These modules are available in the following wavelengths:
- green
520 nm, up to 40 mW of actual output power - blue
405 nm, up to 100 mW – 450 nm, up to 70 mW - red
640 nm, up to 30 mW – 660 nm, up to 100 mW - near infrared
785 nm or 830 nm, up to 100 mW

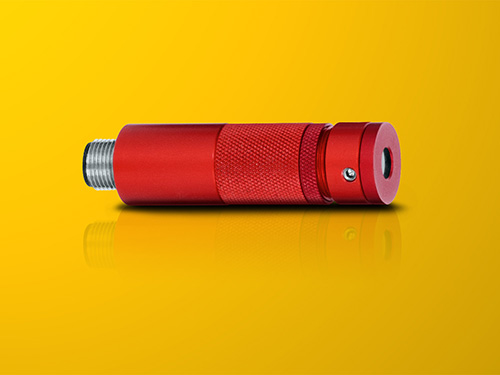

Modules with microcontrollers have housing dimensions that are very compact: 90 mm x 19 mm (length x Ø). The laser modules are operated with a voltage in the range of 5-30 VDC. For easy electrical connection, they are equipped with an M12 connector.
