To quickly and flexibly shield a laser working station, we now also offer laser protective walls. These walls are available in stock and, therefore, have very short delivery times.
Select Items in Stock
The protective walls are available in two strengths: Protective walls made of curtain material for medium laser power levels and metal walls for high-power applications. They are available in stock in two widths: 1.20 m and 1.80 m; both versions are 2.00 m in height.
If larger areas have to be shielded, several walls can simply be connected to each other and set up.
Flexible Use
The protective walls are mounted on wheels to be able to move them effortlessly from one spot to another. To prevent the wall from accidentally rolling away, the wheels can be locked.
Customized Protective Walls
Similar to our fixed mounted laser protective curtains, we also offer custom laser protective walls upon request. Select any dimensions you wish; the maximum height is 2.43 m.
Mobile Laser Protection
So, you require laser protection that is even more flexible? Our ServiceRight mobile wall offers protection on the go. This three-part laser protective wall made of curtain material can be stowed in a small bag for easy transportation and easily converted into a flexible wall when visiting customers.
Protective Levels according to EN12254
PT-250 WB Walls Made of Curtain Materia
| L [nm] | Protective Levels |
|---|---|
| 190 - 315 | D AB9 CE / R AB3 CE |
| >315 - 1050 | D AB6 CE |
| >315 - 1400 | IR AB7 CE / M AB7 CE |
| >1050 - 1400 | D AB5 CE |
| >1400 - 11100 | DR AB3 CE |

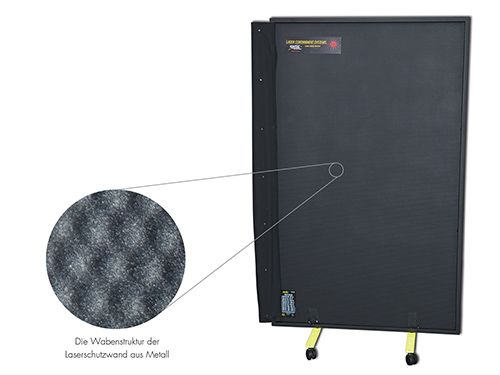

PT-EVG Metal Walls
| L [nm] | Protective Levels |
|---|---|
| 190 - 315 | D AB 10 CE / R AB4 CE |
| >315 - 1400 | D AB7 CE / IR aB8 CE / M AB7 CE |
| >1400 - 11100 | D AB5 CE / R AB3 CE |
