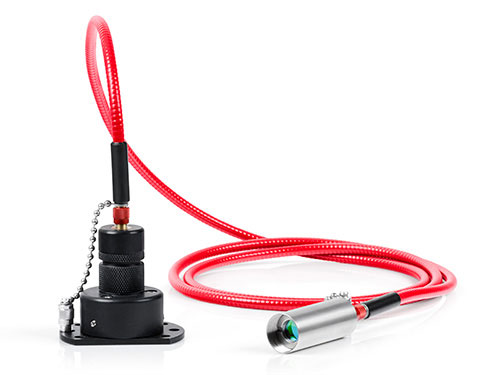

From the input coupling of light using adjustable couplers to transmission via optical fiber assemblies to output coupling using focusable collimators – all of this is available from one source.
Input couplers are used to couple collimated light into an optical fiber. For this purpose, the inner optic can be adjusted along three axes to allow laser beams with Ø ≤ 10 mm to be focused on optical fibers with a core diameter between 100 µm and 2000 µm.
The maximum power of the laser beam to be coupled is up to 150 W. For optimal power transmission, the optics are also coated; in fact, three wavelength ranges between 400 nm and 1300 nm are available. The optical connection of the fiber is carried out using an SMA connector.
Laser fibers: Optical fibers are used in the transmission of optical power. We assemble optical fibers according to your requirements:
Our product range comprises dual-clad fibers (quartz core/quartz cladding/hard clad/buffer) with fiber core diameters from 400 µm to 1000 µm. Different protective tubes are available for selection, including flexible metal jackets or PVC and PTFE tubes. The fiber lengths vary according to customer specifications.
An optical connection is also available for selection: for example, SMA connectors with free-standing fibers are available, either with ARCAP or copper ferrules. At <10 µm, the eccentricity of the fiber core to the ferrule’s outer diameter is very low. Furthermore, we are able to provide the fiber end faces with an AR coating.
Output coupling collimators: In output coupling, the collimation of divergent light out of the connected fiber is important. The output coupling collimator, which is connected via an SMA connector, is used for this purpose. The optics used are adjustable along the z-axis and are available in three types of coatings from 350 nm to 1600 nm. To achieve different beam diameters, the output coupling collimators are available in various focal lengths.
The efficiency of the collimator is more than 85% when multimode fibers are used.
