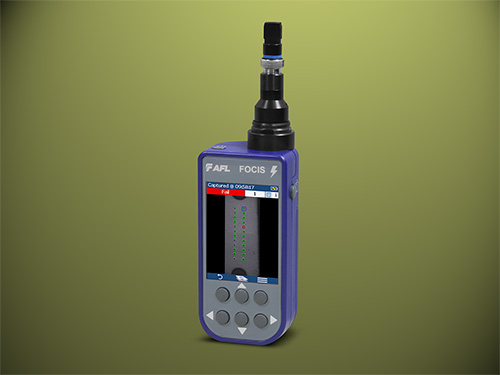

Dirt and scratches on the fiber end surface are the number one source of error in fiber optic networks. The handy FOCIS Lightning connector microscope from AFL facilitates the inspection of multi-fiber connectors in data centers. Within a few seconds it captures the entire surface of an MPO or MTP connector. Thanks to autofocus and automatic centering, a pass/fail analysis for a 24-fiber MPO connector is available after just 15 seconds – for the entire connector and for each individual fiber. The device supports all major telecom test standards such as IEC 61300-3-35, IPC 8497 1, and AT&T TP-76461; however, users may also define their own specifications and criteria. Using a cost-free app, the data can be transmitted via WLAN or Bluetooth.
The plug-in microscope is completely independent of external power sources and data connections. Adapter tips for various multi-fiber plugs are included in delivery. In addition to the possibility of on-site analysis, FOCIS Lightning offers storage space for up to 10,000 images.
