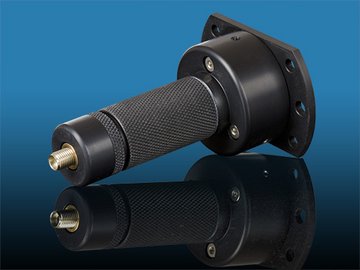

With the coupling unit for CO2 lasers, laser beams are coupled with low loss into a hollow-core fiber; the maximum diameter of the laser beam may only be 5.0 mm. In internal analyses, fibers with an inner core diameter of 750 µm and 1000 µm exhibit very good results in transmission behavior. Due to its modular flange design, the coupling unit can be connected to any available CO2 laser source. Several adjustment screws make it possible to optimally adjust the laser beam across two rotatory and three translational axes. To connect a fiber, the coupling unit is equipped with an SMA connection.
Special offer available until April 30, 2014! Get the first coupling unit at a special discount price* of €550.00.
*Prices and technical specifications are subject to change without notice. Prices are ex works Olching, without packaging material and uninsured. Subject to prior sales. Available for Germany, Austria and Swiss.
