Detector Screens for Wavelengths from 1.5 µm to 20 µm

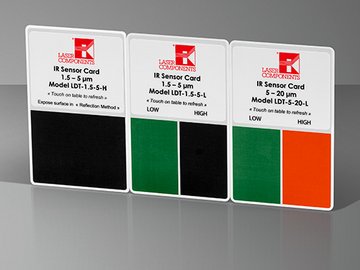

The path of invisible laser radiation can be verified using detector cards. They are ready for immediate application and do not have to be activated or optically charged.
The cards for the wavelengths from 1.5 µm to 5 µm and 5 µm to 20 µm are new; they can localize the beam path of Hol:YAG, Er:YAG, and CO2 lasers, for example. Two versions are available for both wavelength ranges:
High-power version. The highpower versions have an active area of 40 mm x 52 mm and can be used with a laser power of up to 120 W/cm² and 50 W/cm².
High-power/low-power version. Two active areas, each of which measures 40 mm x 25 mm in size, are integrated into these converter cards. The power of the low-power side amounts to up to 8 W/cm², and the power of the high-power side is identical to that of the highpower version. The cards cost EUR 219.00/unit*; ask about an individual offer for larger quantities.
* Prices and technical specifications may be subject to change or error. Prices are ex works Olching and do not include packing, insurance, or value-added tax. Products may be subject to prior sale.
