V-Groove Splicers

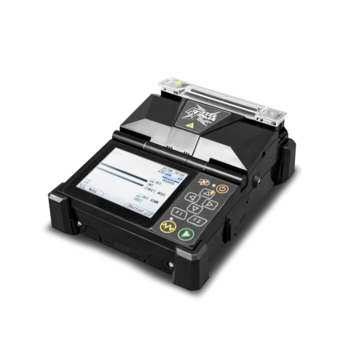

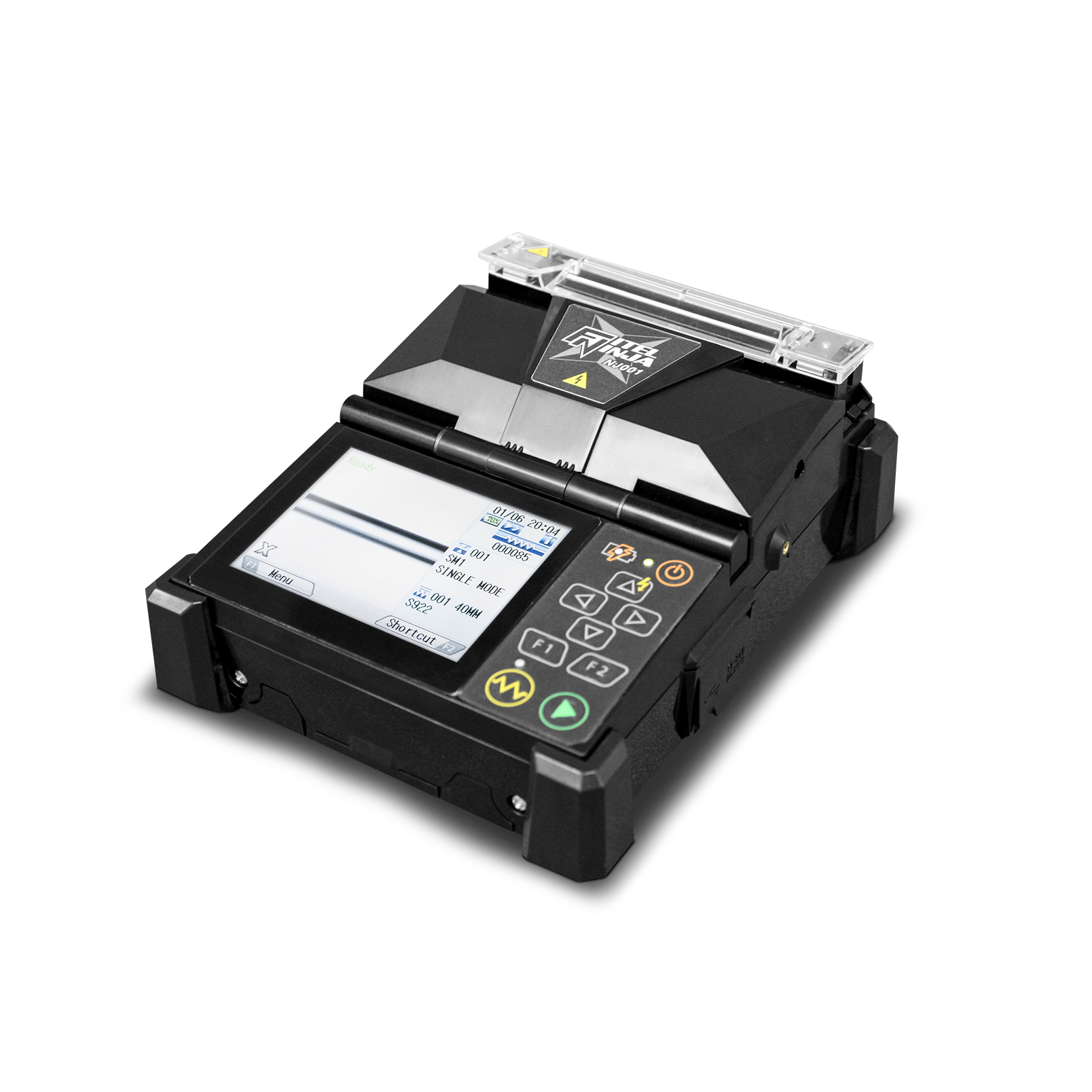

V-Groove Splicer FITEL Ninja

The FITEL Ninja is a powerful, fully-automatic, state-of-the-art V-groove splicer. It is suited for metro, LAN, and fiber-to-the-home applications and can be used in a variety of applications. This high-quality V-groove setup can be adjusted along the x and y axes when inserting the fiber – thanks to the stationary and centered V grooves. The removable V groove for easy cleaning is unique. The rechargeable battery makes it possible to achieve 100 splices and heating cycles with one charge, as well as 180 splices without  heating. The large splicing zone, which is illuminated brightly by three LEDs, allows quick and easy operation in a generous operating range. Inexpensive, small, and handy – at a weight of less than 1 kg – this device is the perfect choice for flexible operation.

With the Ninja splicer, you can work both reliably and quickly. The splice of a single fiber takes 13 seconds.

For the purpose of quality assurance, this splicer stores the last 1500 splice values, including the last 100 fiber images for documentation.

Also with the device EZ!Fuse™ allow SM and MM connectors to be spliced directly (including E2000/HRL).
