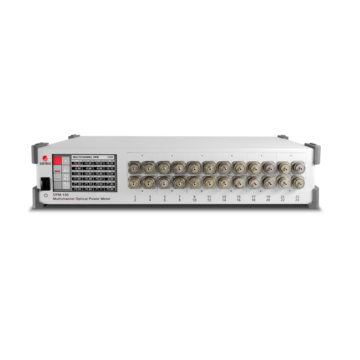

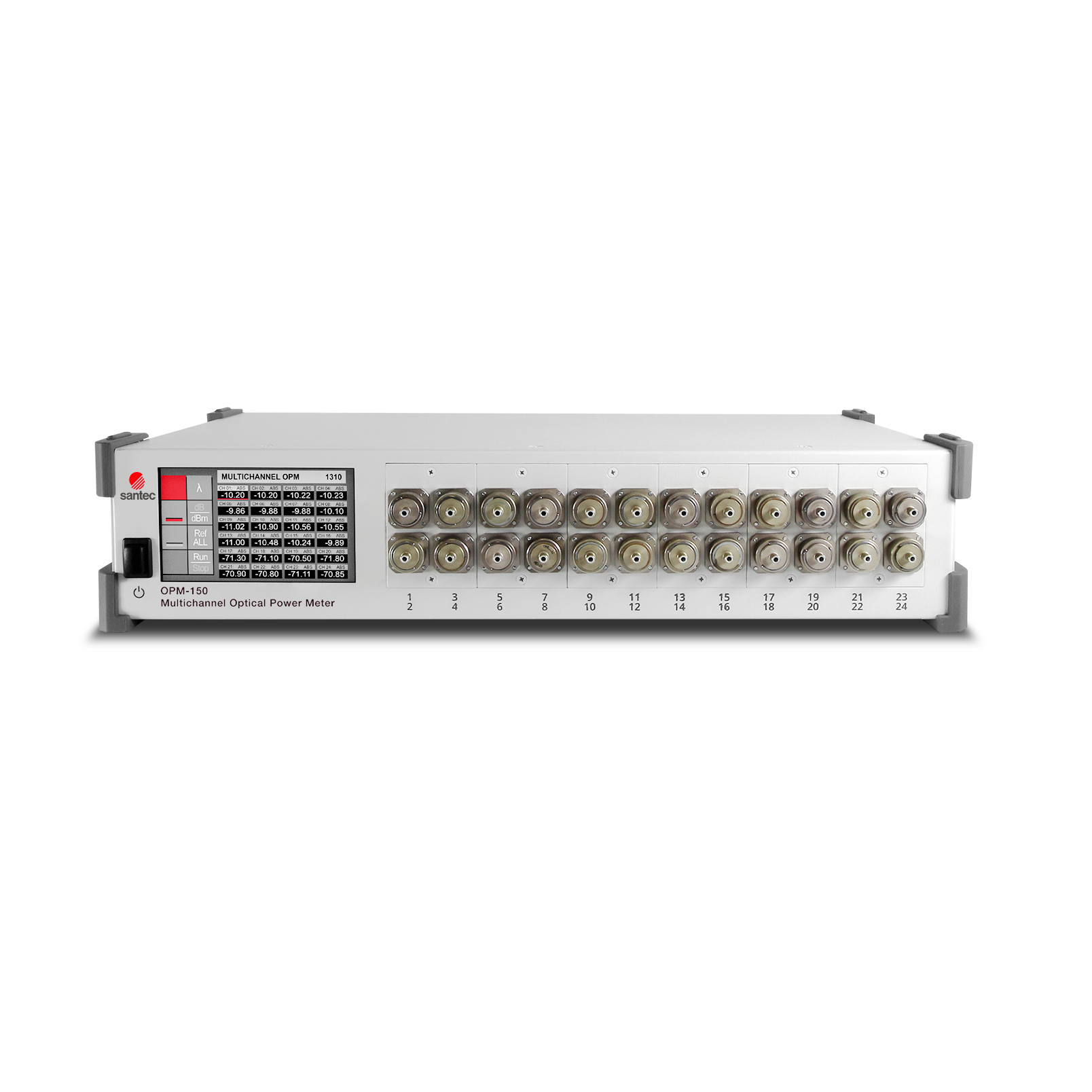

OPM-150
The Santec OPM-150 is a versatile and cost-effective multichannel optical power meter for manufacturers and professionals managing high-channel-count optical systems. It supports configurations of up to 24 individual channels, each equipped with its own optical power meter, enabling simultaneous power measurements across all channels. With a sampling time of less than 30 ms, it captures rapid changes or drop-outs effectively, providing the fast feedback necessary for active optical alignment in fiber coupling and silicon photonics applications.
The device offers flexibility by allowing users to mix and match different detector types—such as Si or InGaAs—and sizes ranging from 1 mm to 10 mm, catering to diverse testing requirements. Its USB and Ethernet connectivity options facilitate easy data management and integration into existing systems.
Applications:
- Optical alignment
- Silicon photonics
- Optical signal monitoring
- Environmental testing
- Transceiver testing
- Lab and R&D
- Parallel laser burn-in testing
Contact
Benefits
- Fast and Accurate Multichannel Measurements – Supports up to 24 channels with individual power meters, enabling simultaneous measurements with a sampling time of less than 30 ms for rapid feedback.
- Flexible Detector Options – Allows users to mix and match Si or InGaAs detectors in various sizes (1 mm to 10 mm), making it adaptable to different testing needs.
- Ideal for Active Alignment – Captures rapid power changes and drop-outs, making it perfect for active optical alignment in fiber coupling and silicon photonics applications.
- Seamless System Integration – USB and Ethernet connectivity ensure easy data management and smooth integration into existing manufacturing and testing setups.
Features
- Mix and match different detector types (Si or InGaAs) and sizes (1, 3, 5 or 10 mm)
- Simultaneous readings from up to 24 detectors
- < 30 ms sampling time
- USB or Ethernet
Datasheet
