A series of measuring units is available for spectral measurements: stand-alone systems and modules for the MAP platform.
- Swept wavelength test system
Test system for the production and development of passive DWDM components, ROADMs, and circuit packs to fully identify the wavelength-dependent properties of passive optical components. - Multi-wavelength detector (mWave) and high-resolution OSA (mHROSA)
A multi-wavelength detector and high-resolution optical spectrum analyzer with spectral sub-GHz resolution are combined in a single MAP module.

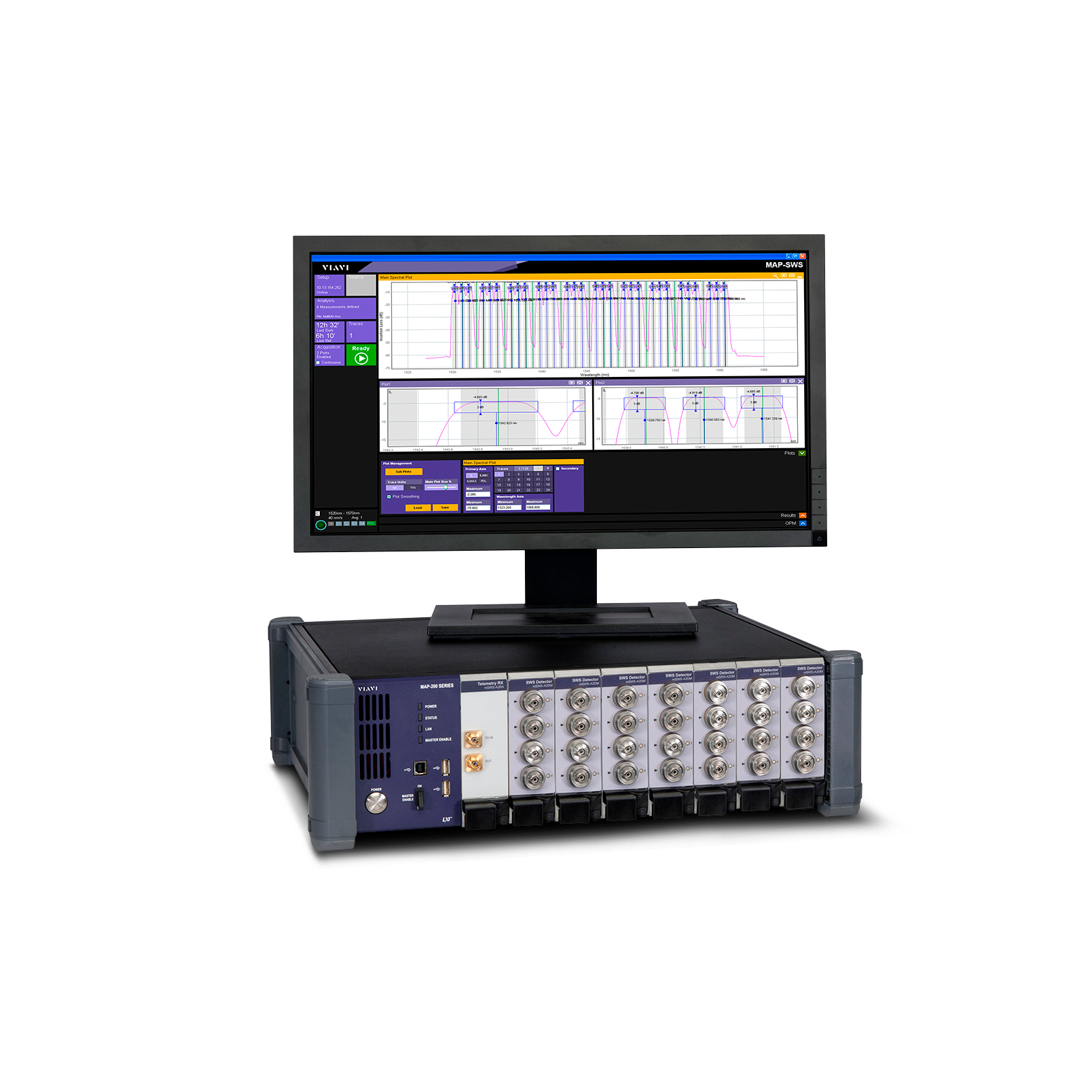

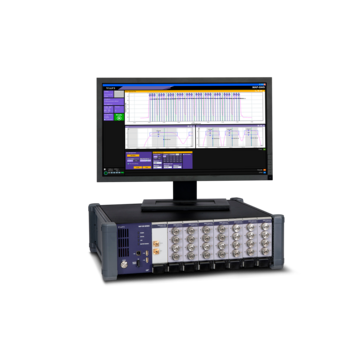

Measuring the wavelength dependency of passive optical components – SWS System
The swept wavelength system (SWS) module is available to measure the wavelength dependency of passive optical elements with the MAP system. It is used for the spectral measurement of optical DWDM components (i.e., for ROADMs, wavelength-selective optical switches, tunable filters, or optical circuit packs. The SWS system comprises the following
- Tunable laser
- Optical sources – source optical module (SOM)
- Receiver chassis
- Control module
- Detector module
- Application software
It is used to measure the following:
- Insertion loss – IL
- Return loss – RL
- Polarization-dependent loss – PDL
- Directivity
SWS System Features
- Up to eight measuring stations can be operated at one base
- Absolute wavelength accuracy ±0.002 nm
- Up to 256 detectors per receiver station
- Scanning speed up to 40 nm/s
- DLLs for customer-specific applications
Multi-wavelength Detector (mWave) and High-resolution OSA (mHROSA)

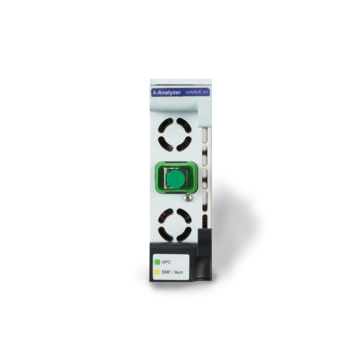

Multi-wavelength Meter – mWAVE
The measurement principle behind the mWAVE multi-wavelength frequency meter is based on coherent detection technology. The frequency resolution used to determine the optical power level is currently unmatched; the detection of the center wavelengths of densely packed optical signals with a spacing of just 2 GHz is also worth pointing out.
- Measurement range
Expanded C band: 196.4-191.1 THz
is equal to 1526.44-1568.77 nm
High-resolution OSA – mHROSA
The mHROSA optical spectrum analyzer ensures a sub-GHz resolution: it combines the WAVE multi-wavelength frequency meter with a high-resolution optical spectrum analyzer (OSA) in a single module of standard width.
Typical applications include the characterization of DWDM transmission systems, optical sources, transponders, and line cards. The mHROSAs are particularly well suited for the characterization of components for 10/40/100/400 G applications.
Features
- Sub-GHz wavelength resolution
- Measurement range:
Expanded C band: 196.4-191.1 THz
is equal to 1526.44-1568.77 nm - Measurement of frequency, optical power level, and OSNR
- Analysis of side-mode suppression of optical laser sources
